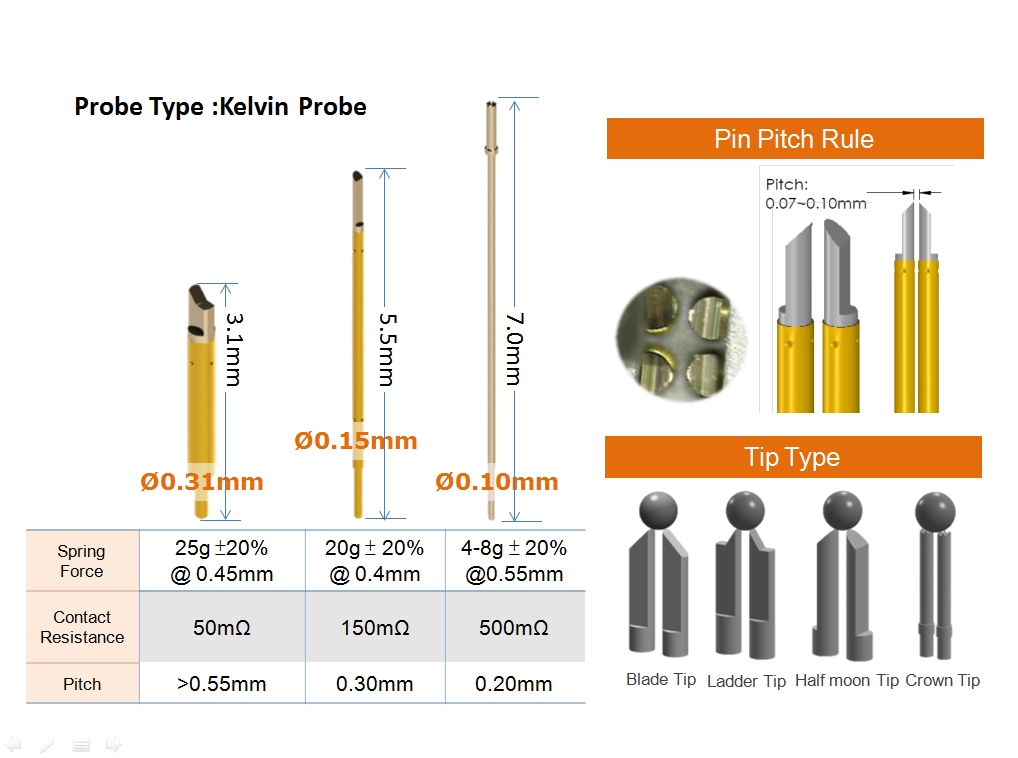

Blade: Common tip type for kelvin testing
Ladd er : Similar with blade type but would be more accurate on positioning

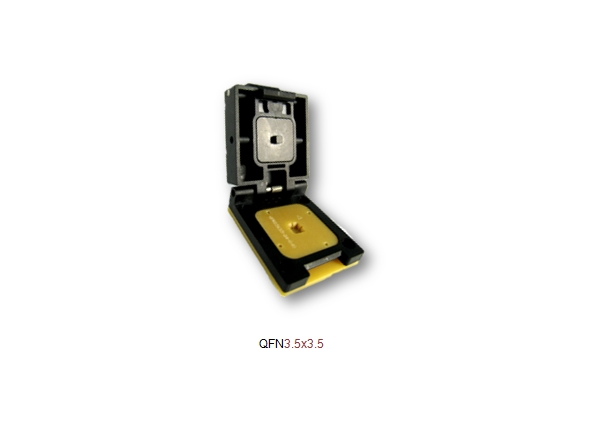

Half moon: Mostly applied in QFN, QFP
Crown: No need to be aware of the direction when manufacture the socket and pin inserting since each claw can perfectly prick on testing area

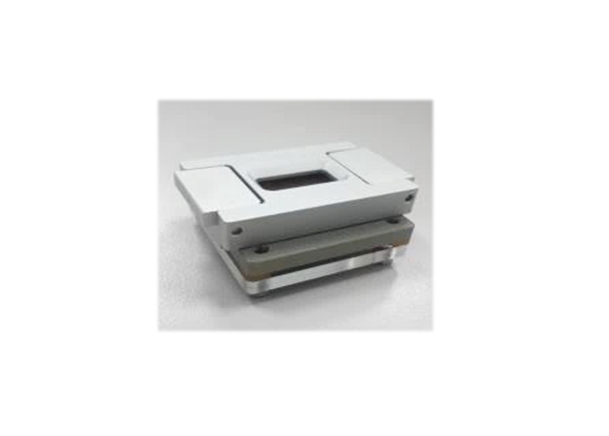

1.Fixed compression stroke
2.Low pin counts(< 200 Pins)
3.Simple structure
4.Cheaper
4.Suit for QFN and QFP package

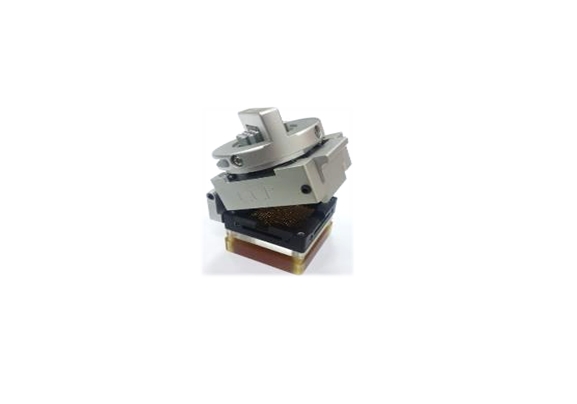

1.Flexible compression stroke
2.Complex structure
3.More expensive
4.Suit for all kind of package
1.With heat sink
2.Applied for High power IC
(Heating temperature from 80℃ to 200℃)

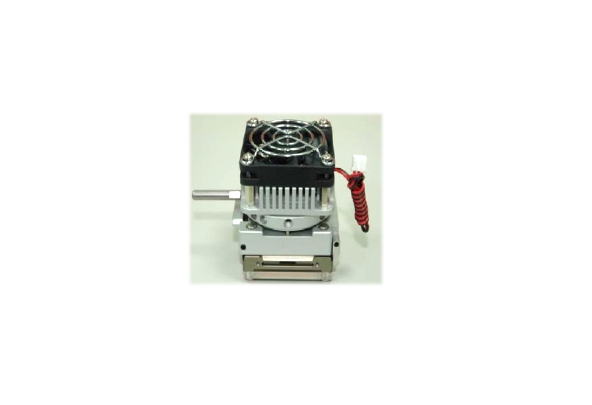

1.With extra cooling fan
2.Applied for High power IC
(Heating temperature above 200℃)

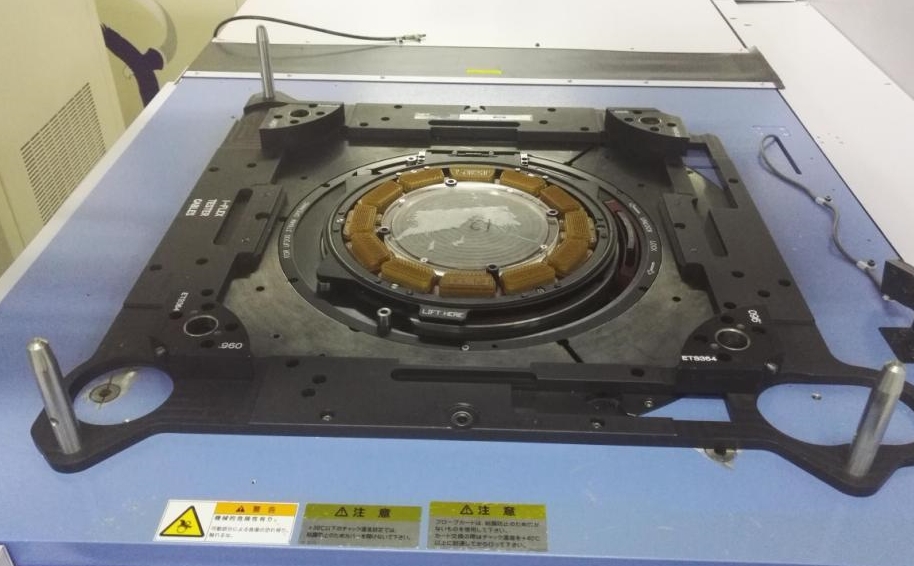

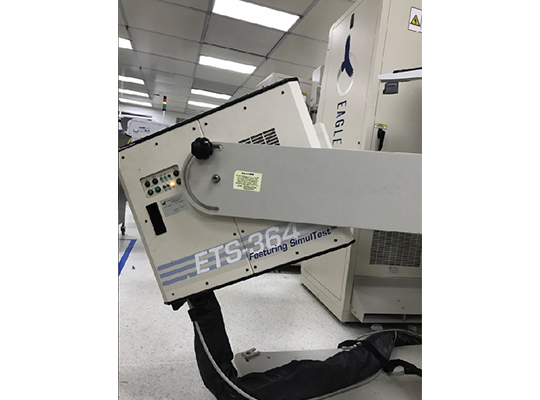

ETS364 hard docking tools PROBE
ETS364 hard docking tools TESTHEAD

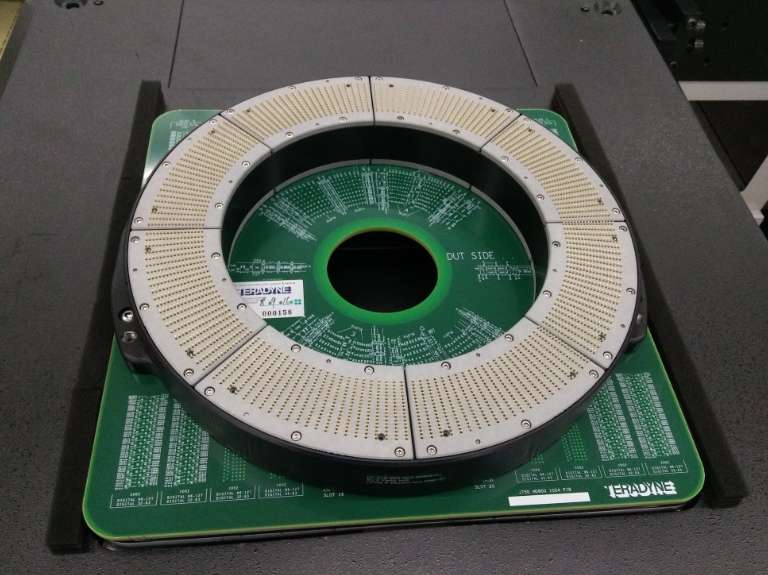

ETS364 pogotower
ETS364 rozerback
ETS364 hard docking tools PROBE
ETS364 hard docking tools TESTHEAD
ETS364 pogo tower

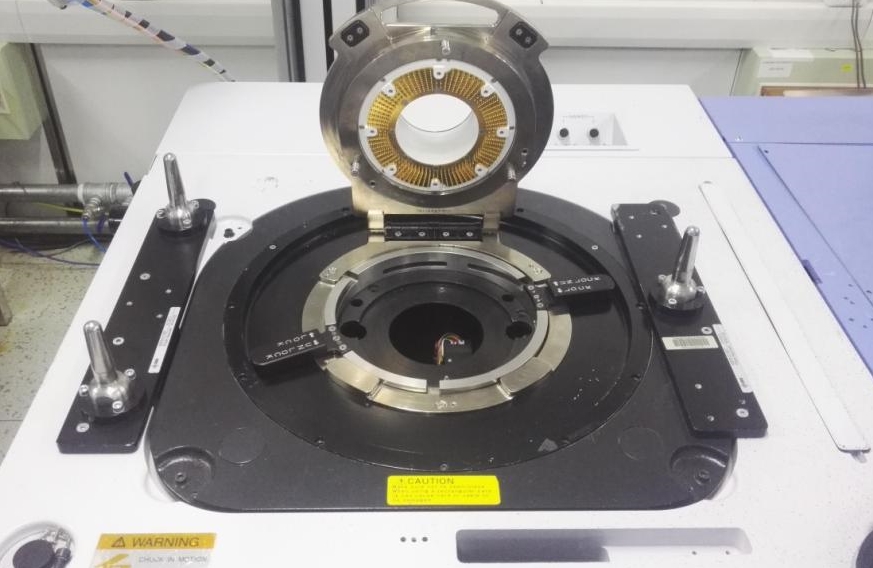

Maverick hard docking tools PROBE
Maverick hard docking tools TEST HEAD
Maverick tower

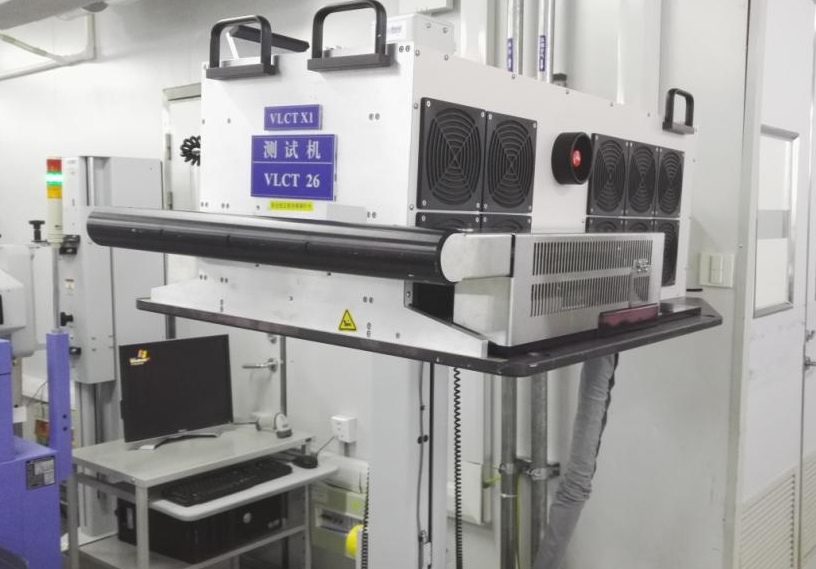

VLCTX1 hard docking tools PROBE
VLCTX1 hard docking tools TEST HEAD
VLCTX1 round RASP
VLCTX1 square RASP

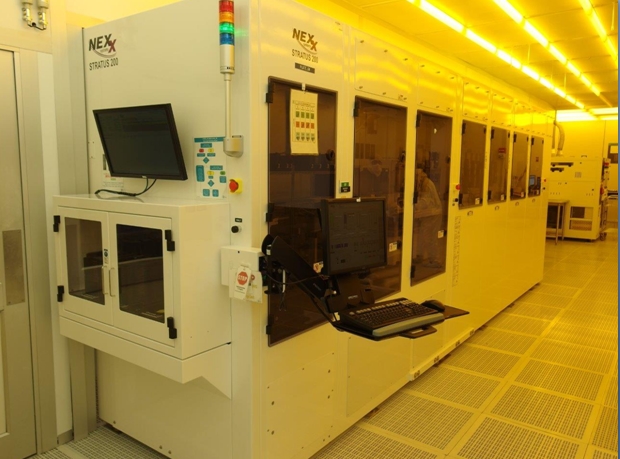

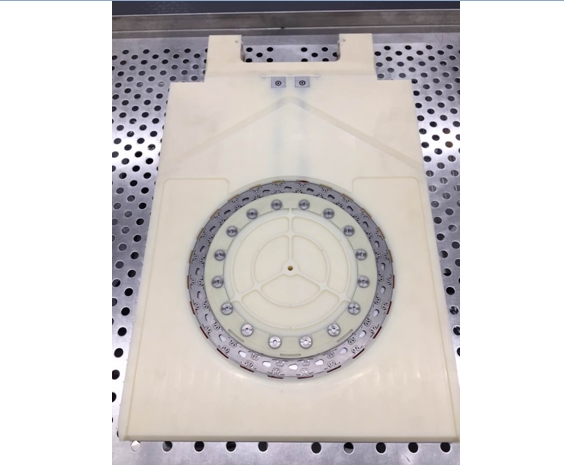

适用设备:NEXX Stratus 200/300 Plating System
1.标签采用丝印条码标签;;
优点:耐腐蚀、使用便捷、寿命久
2.密封O ring采用含氟橡胶材料;
优点:耐腐蚀、弹性强、使用寿命久
3.主板材料采用进口PVDF;
优点:耐腐蚀、不变形、加工面细腻无毛刺、硬度适中、与CRS有很好的密封性
4.弹簧O ring 采用钛合金材料;
优点:耐腐蚀、弹性强、重量轻、采用0.08mm 线割工艺,使用寿命久
1.骨架采用全进口弹簧不锈钢,加工工艺复杂,凸点无缝焊接
优点:耐腐蚀;弹性强;晶圆接触面导电性均匀小于4Ω;
2.包胶采用美国进口全氟橡胶,新加坡封装工艺:
优点:密封性强;耐腐蚀;胶体不易脱落;不影响晶圆导电性。
1.骨架采用全进口弹簧不锈钢,加工工艺复杂,凸点无缝焊接
优点:耐腐蚀;弹性强;晶圆接触面导电性均匀小于4Ω;
2.包胶采用美国进口全氟橡胶,新加坡封装工艺:
优点:密封性强;耐腐蚀;胶体不易脱落;不影响晶圆导电性。
适用设备:NEXX Stratus 200/300 Plating System
1.标签采用丝印条码标签;;
优点:耐腐蚀、使用便捷、寿命久
2.密封O ring采用含氟橡胶材料;
优点:耐腐蚀、弹性强、使用寿命久
3.主板材料采用进口PVDF;
优点:耐腐蚀、不变形、加工面细腻无毛刺、硬度适中、与CRS有很好的密封性
4.弹簧O ring 采用钛合金材料;
优点:耐腐蚀、弹性强、重量轻、采用0.08mm 线割工艺,使用寿命久

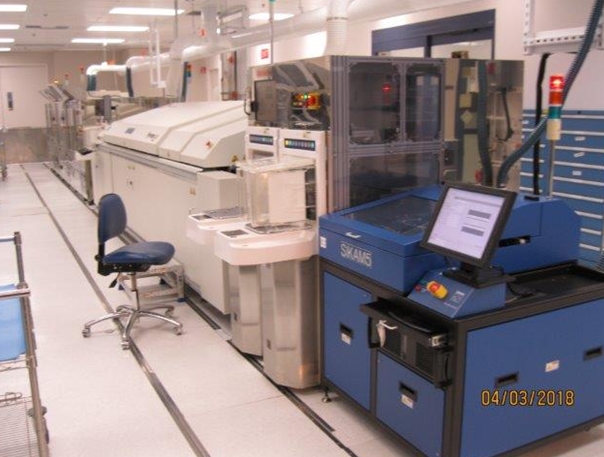

WLCSP- 全自动植球机线
Athlete-FA Corporation BM-1200W Solder Ball Mount
EQUIPMENT DETAILS:
-Tool Status: Powered up.
- Athlete Ball mounter
- Athlete Ball inspection and repair system
- Pyramax reflow
- Sikama cleaning system
-Middle Unloader/Unloader with SECS/GEM
-SEMI S2S8 capable
Vintage 2011
-Manufacturer : Ultratech
-Type : Wafer Stepper
-Model : Saturn Spectrum 3e
-Manufacturer : AMAT
-Type : Sputtering System
-Model : Quantum X Plus
Manufacturer : Camtek
Type :AOI/Inspection System
Model : Eagle-AP
